machine type |
output |
sizes (width/height/length) |
Super 400 K |
up to 6.000 cycles/h |
10-450mm/ 1-300mm / 80mm-∞ |
- output up to 6.000 cycles/h or Vmax=50m/min.
- product width: 10 - 450mm
- product height: 1 - 300mm
- product length: 80 - ∞mm
- continuous operation
- servo technology
- product data storage
- forming shoulder adjustable to all sides
- overlapping at the bottom
- lateral welding
- product infeeding via belt or fingerchain
|
Super 400 XLM/10 |
up to 10.000 cycles/h |
10-450mm/ 1-150mm / 80mm-∞ |
- output up to 10.000 cycles/h or Vmax=70m/min.
- product width: 110 - 320mm
- product height: 2 - 150mm
- product length: 150 - 500mm
- continuous operation
- servo technology
- product data storage
- overlapping welding at the top
- film overlapping on the top
- lateral welding
- product infeeding via belt or fingerchain
|

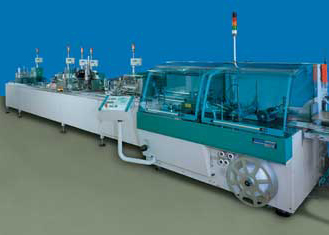

Super 400 XLM/12 |
up to 12.000 cycles/h |
10-450mm/ 1-150mm / 80mm-∞ |
- output up to 12.000 cycles/h
- product width: 110 - 450mm
- product height: 2 - 80mm
- product length: 150 - 500mm
- continuous operation
- servo technology
- product data storage
- overlapping welding at the top
- film overlapping on the top
- lateral welding
- product infeeding via belt or fingerchain
|
Super 400 XXL |
up |
|
- output up to 15.000 cycles/h
- product width: 100 - 450mm
- product height: 1 - 80mm
- product length: 80 - ∞mm
- continuous operation
- servo technology
- product data storage
- overlapping at the top
- lateral welding
- product infeeding via fingerchain
|
