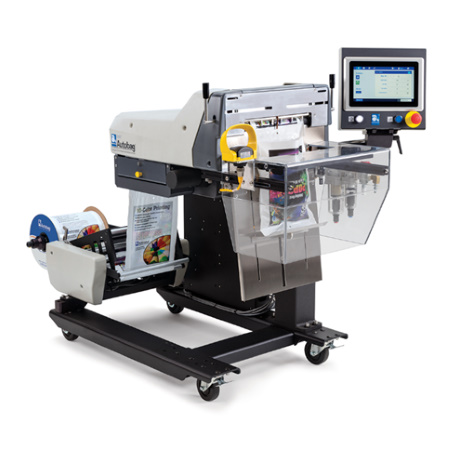

Autobag AB500

The Autobag® 500™ bagger is a technologically-advanced, automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput. This system delivers maximum machine uptime while lowering total cost of ownership.

Features:

  • Capable of cycling at rates over 100 bags per minute
  • Inherently safe design for safe hand loading
  • Highly configurable layouts: left- or right-hand access to the HMI, cycle switch and bag loading area, improving ergonomics and operator productivity.
  • compatible with Autobag and third-party counters, scales and infeeds.
  • can be networked to facilitate full pack station integration and central monitoring.
  • 45-degree tilt option available for orienting long or delicate products.

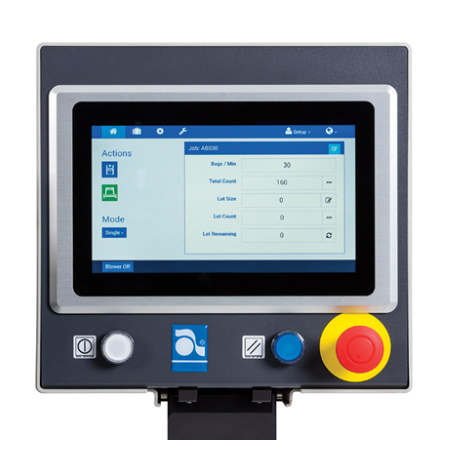

  • HMI with AutoTouch Control Software
  User Benefits:
  • Easily integrates with inline printers, counters, scales, and conveyors
  • Easy changeover of bags
  • AutoTouch Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
  • More bag size options; from 5.1cm W x 6.4cm L to 30.5cm W x 50.8cm L supported (91.4cm long unsupported)
  • Compact footprint
  • Simple height adjustment and casters for operator comfort and portability

Technical Specifications:

Weight: 159 Kg
Electrical: Universal Input: 110V to 240V VAC, 50/60 Hz Power Consumption: 1500 Watts (VA) max
Air Feed: 5 CFM/80 psi of clean, dry air

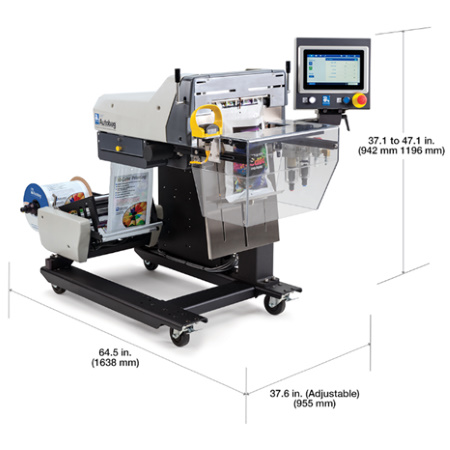

Width: 95.5 cm (Adjustable)
Height: 94.2cm - 119.6 cm
Length: 163.8 cm
Pass-Through: 12.7 cm max
Bag Thickness: 27.7 to 101.6 um (or microns)
Bag Sizes: W 5.1cm to 30.5 cm L * 6.4cm to 50.8   *There are two versions: Long- min bag length is 12.7cm Short- min bag length is 6.4cm cm
Weighing Capacity: Up to 2.27Kg (with load shelf)


Optional Additions:
  • AutoLabel 500 inline imprinter
  • Product load tray
  • A range of infeed funnels
  • SimpleCount counting system
  • Seal flattener
  • A range of bag deflators
  • Footswitch
  • Raised unwind
  • Bags-in-a-box adapter
Typical Applications:
  • Aerospace & defence
  • Apparel & accessory packaging
  • Automotive
  • Electronics
  • Hardware & fasteners
  • Healthcare
  • Hobby & craft
  • Household products
  • Personal products
  • Pet products
  • Toys
